RG Series Manual Gear

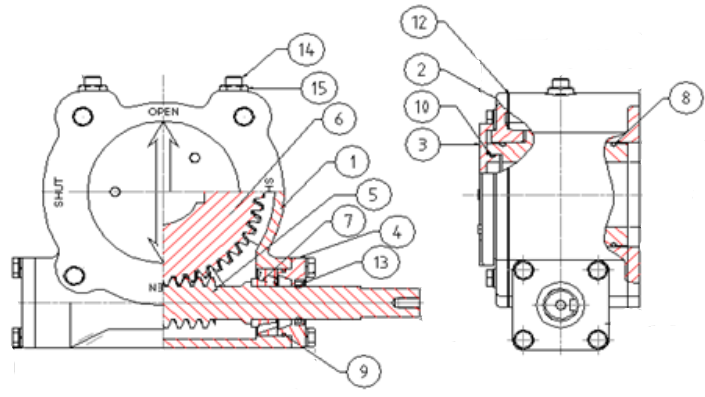

Parts Materials List

Item Description Qty Material Specs. / Standard
1

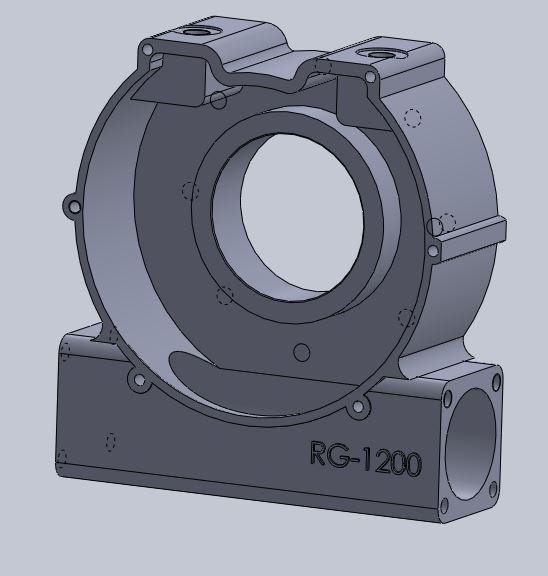

Housing
1 SGI 400/15 IS 1865
2

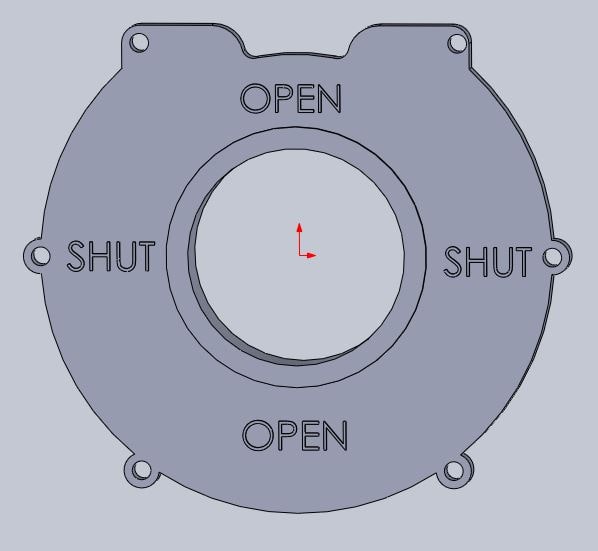

Top Cover
1 SGI 400/15 IS 1865
3

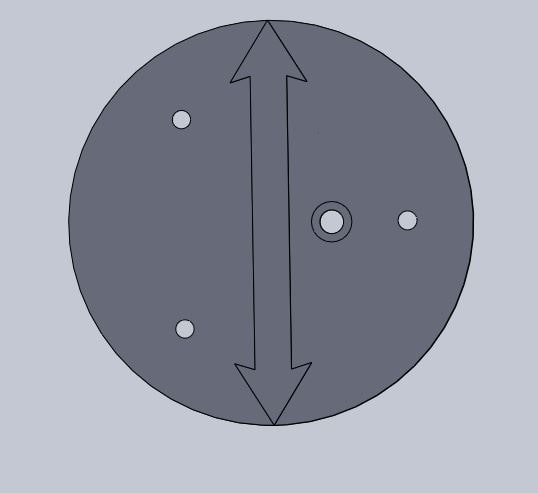

Indicator
1 SGI 400/15 IS 1865
4

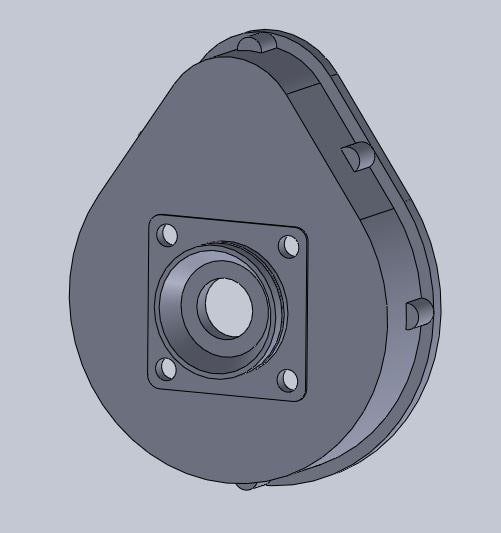

End Cover
2 SGI 400/15 IS 1865
5

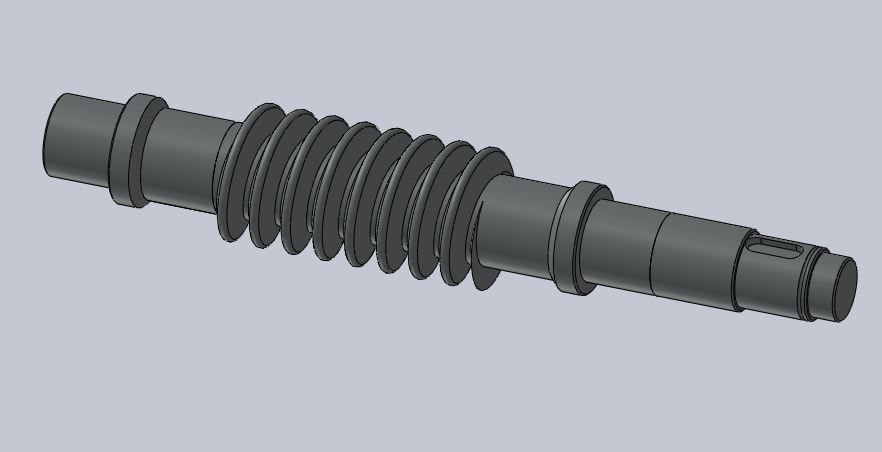

Worm Shaft
1 1%CrMo Steel En 19 / BS970 (Cond.R)
6

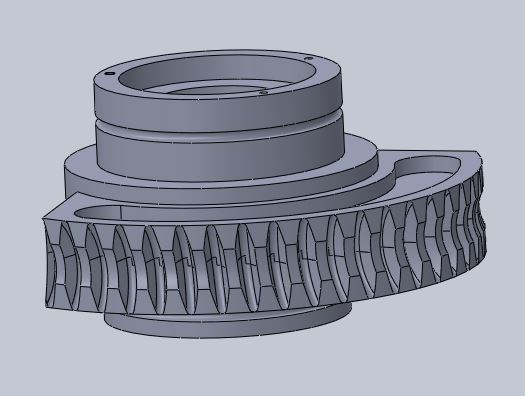

Quadrant
1 SGI 500/7 IS 1865
7

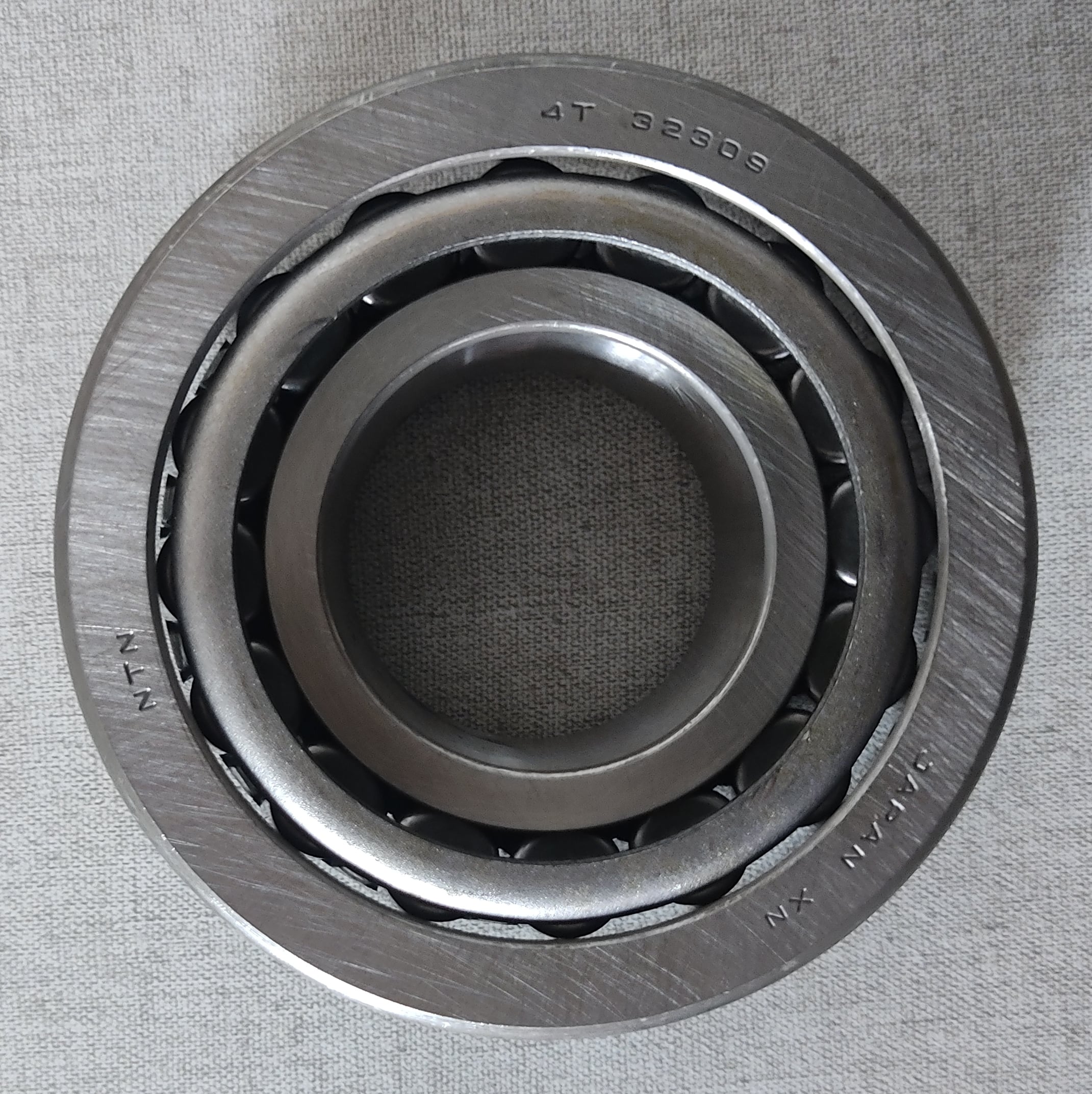

Taper Roller Bearing
2 BS SAE52100
8

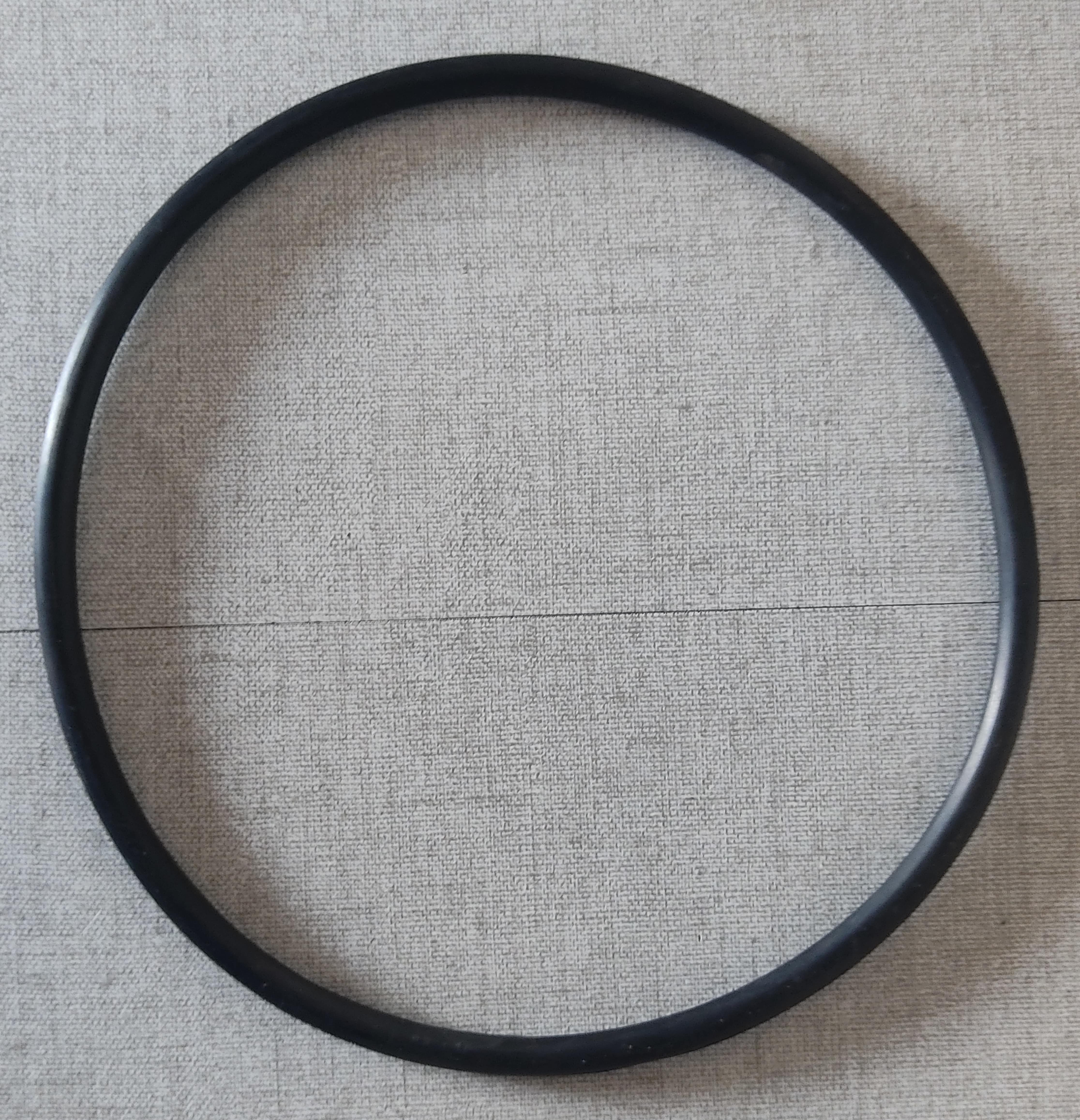

Quadrant O'Ring
2 Nitrile IS 3400
9

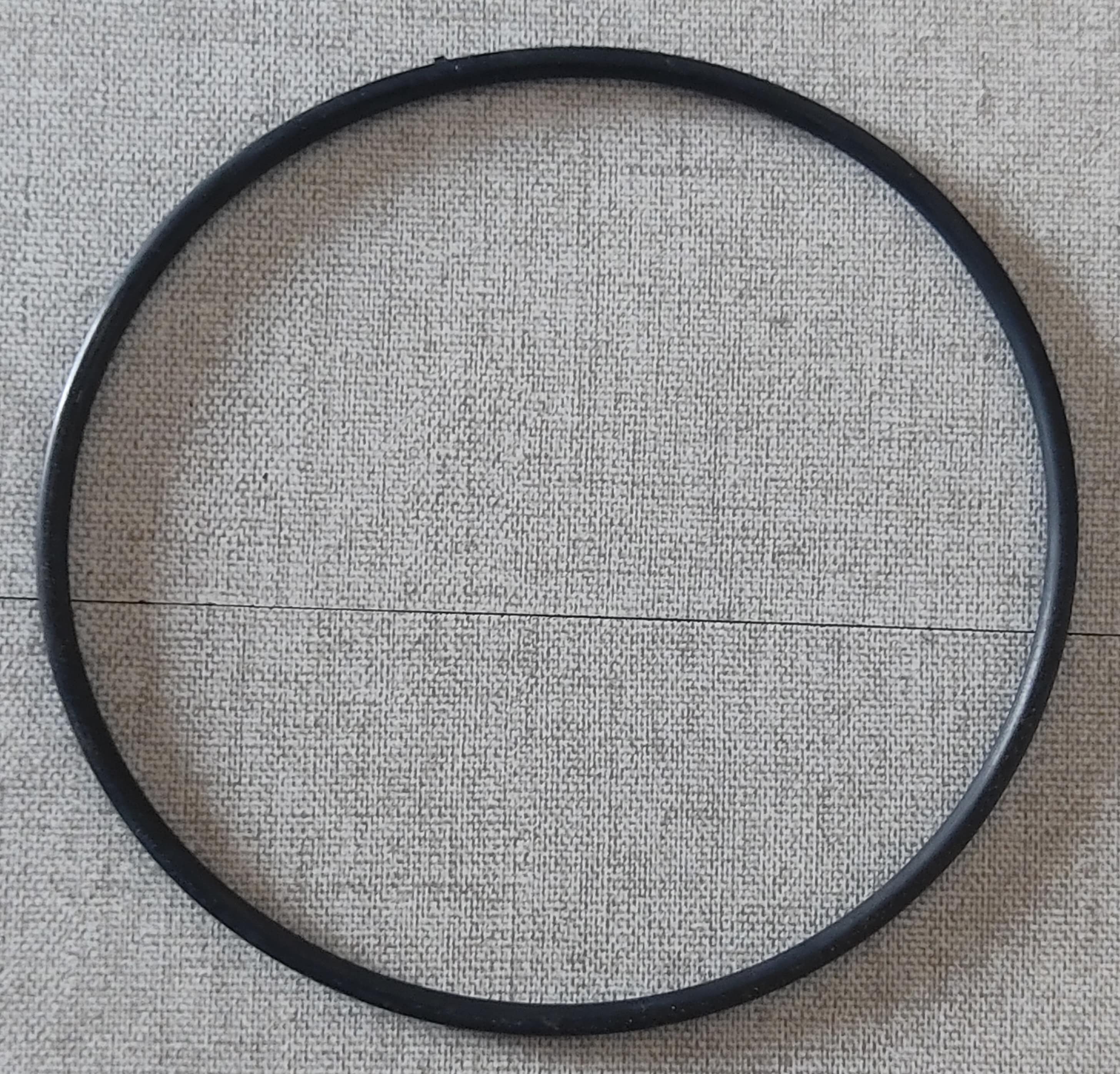

End Cover O'Ring
2 Nitrile IS 3400
10

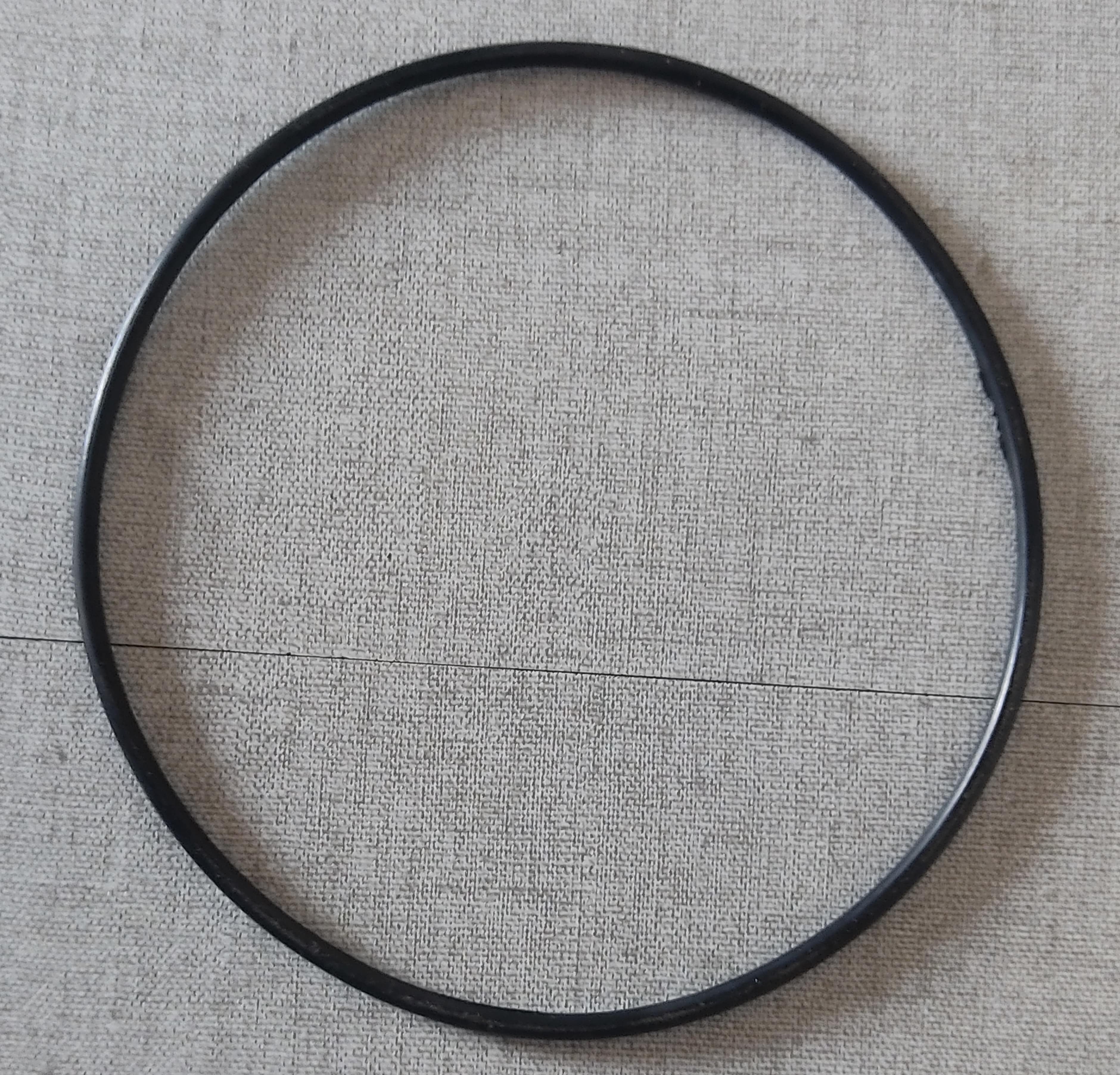

Indicator O'Ring
1 Nitrile IS 3400
11
Grease
1 EP2 IS 7623
12

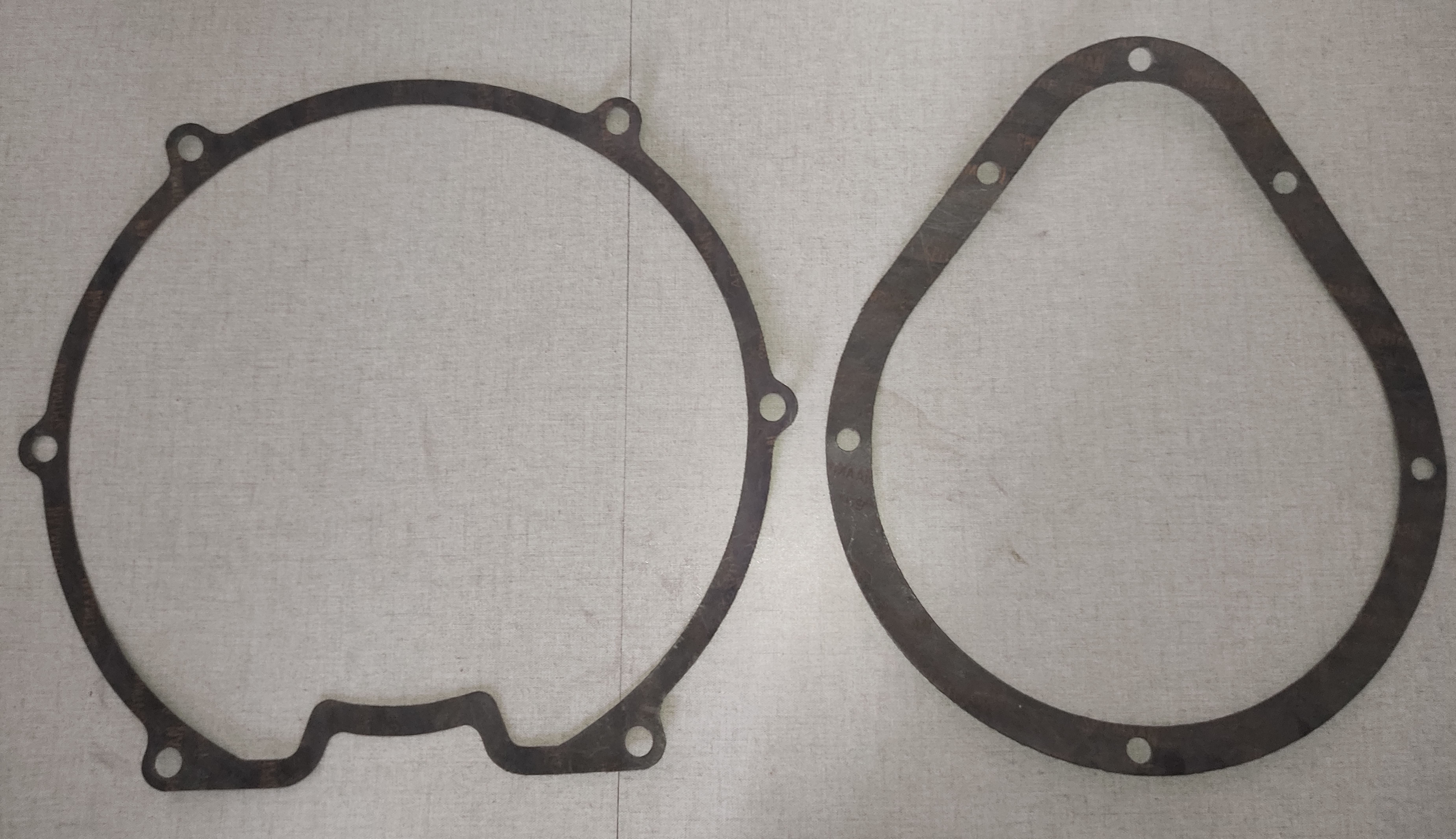

Gasket
1 Non Asbestos IS 2712
13

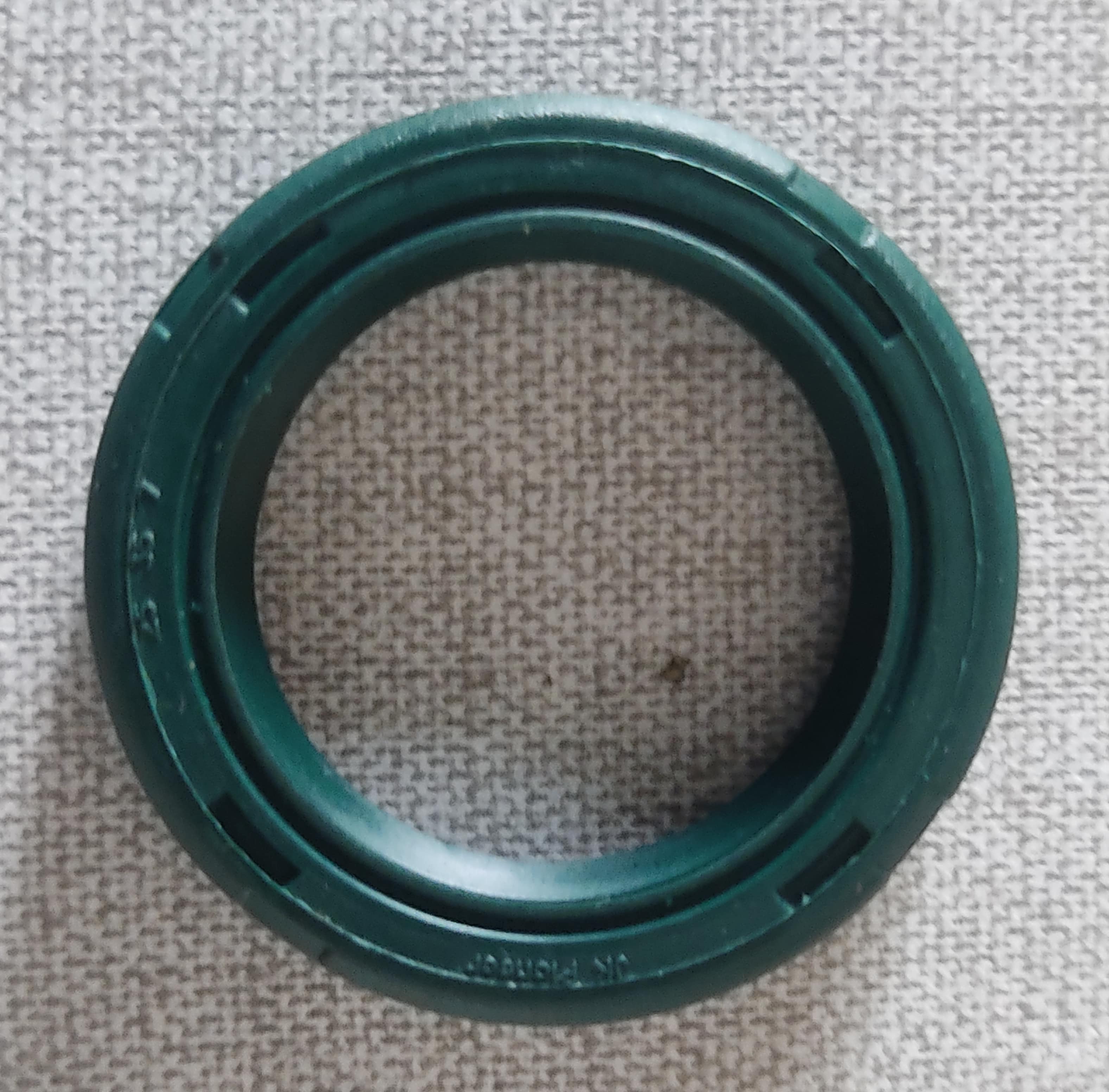

Shaft Seal
1 Nitrile IS 3400
14

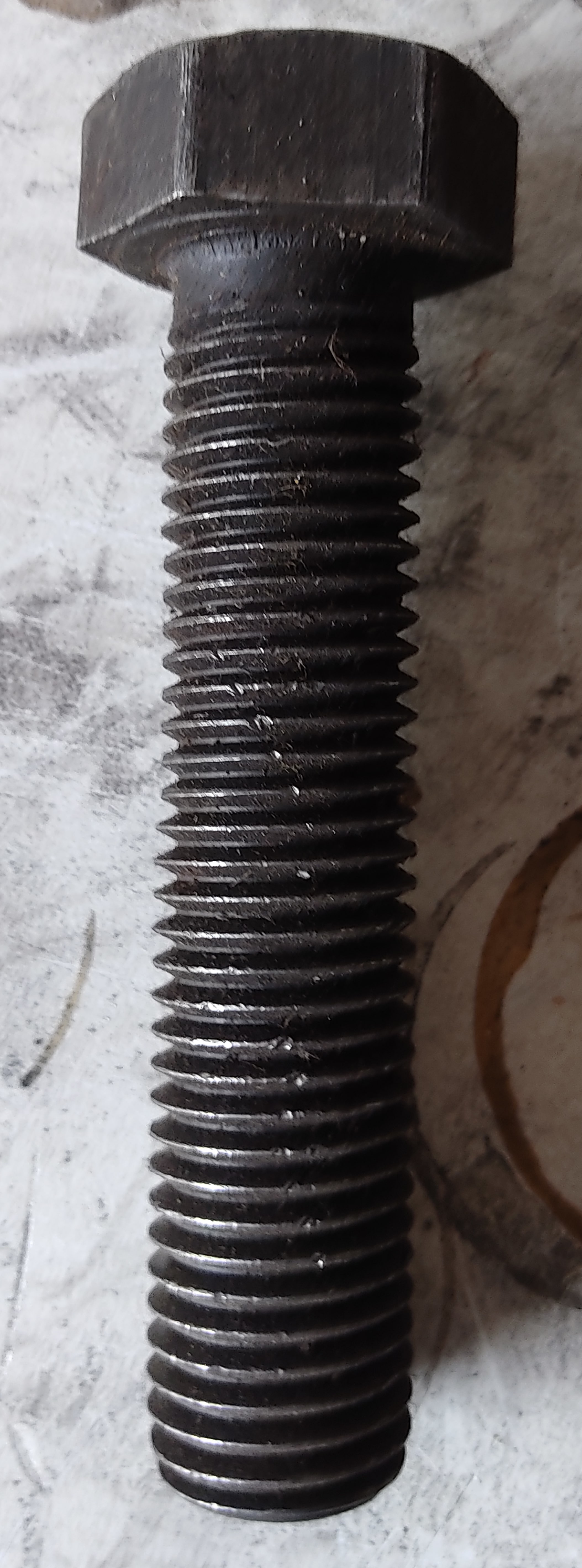

Travel Stops
4 Carbon Steel Gr. 10.9 / BS 3692
15

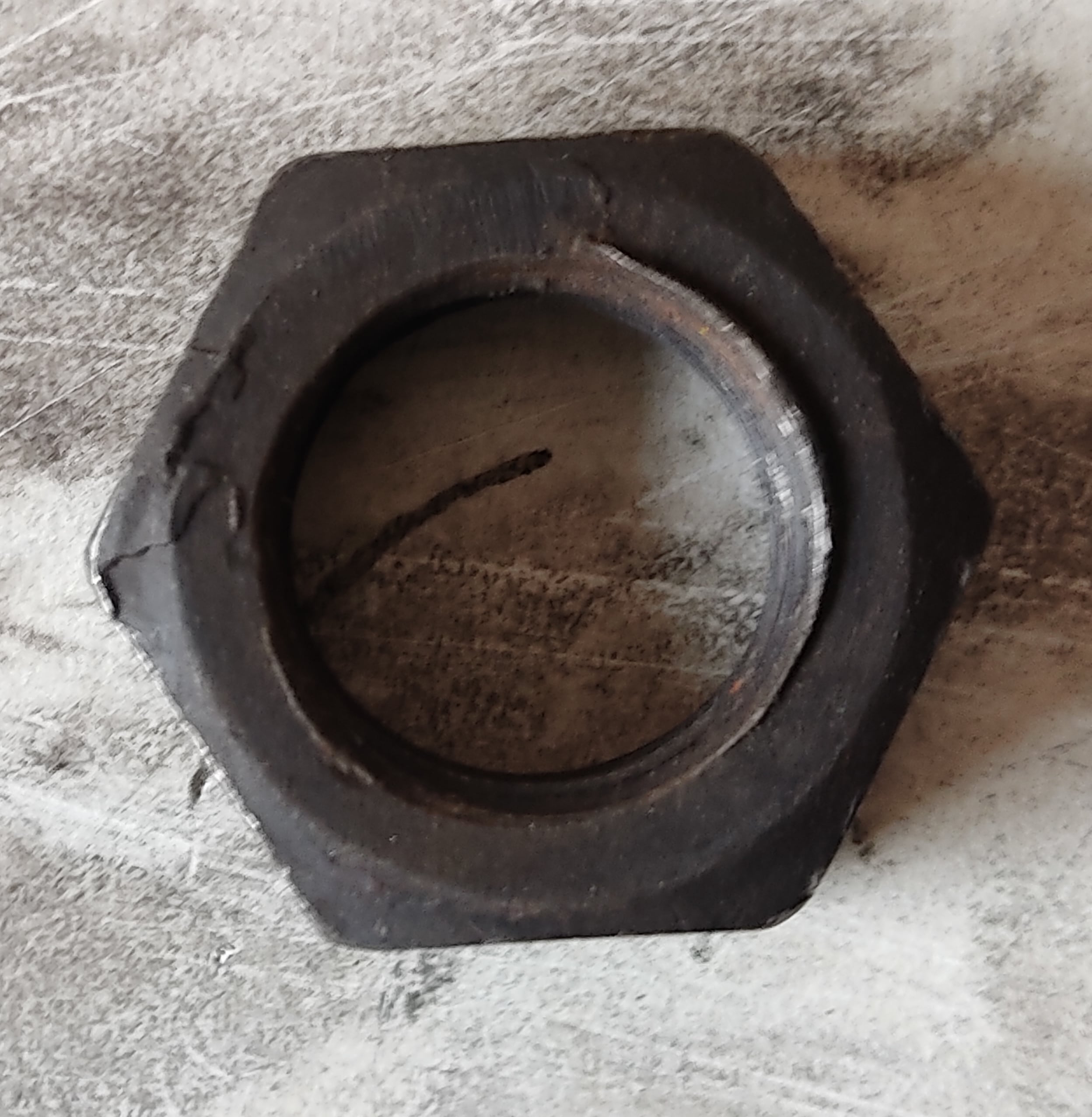

Lock Nut
2 Carbon Steel Gr. 10.9 / BS 3692

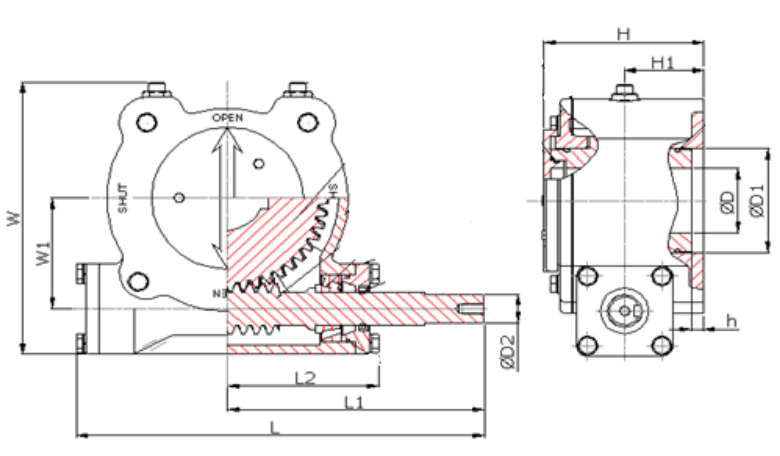

Dimensions

Model L L1 L2 W W1 h H H1 D [Max] D1 D2 O/P Key
Units mm mm mm mm mm mm mm mm mm mm mm mm
RG-90 250 168 83 165 66 8 92 44 45 68 Ø19 6 x 6
RG-170 296 186 110 211 86 8 115 57 50 80 Ø24 8 x 7
RG-170B 296 186 110 211 86 8 115 57 50 80 Ø24 8 x 7
RG-320 405 250 156 273 128 8 114 55 72 110 Ø24 8 x 7
RG-400 405 254 152 295 128 8 131 64 75 110 Ø24 8 x 7
RG-450 405 254 152 295 128 8 131 64 85 120 Ø24 8 x 7

Technical Data Sheet

Richtech’s technical data shows various combination of products which is more flexible for the customers to choose their desired product by considering Mechanical advantage, Gear ratio, Actuator sizing etc.

Model Gear Ratio Output Tarque [Max] Mechanical Advantage [MA] Input Tarque Turns to Close Bore Dia. [Max] Stem Height [Max] Key at Bore [Max] Input Shaft Dia. [Max] Flange Type [ISO-5211] Unit Weight [Exd. Hand Wheel]
Units N-M +10% N-M +/-5 deg mm mm mm mm Min Max Kg. [Approx.]
RG-90 42 900 13.1 69 10.5 42 70 12 x 8 19 F10 F14 9.0
RG-170 46 1706 14.2 120 11.5 50 101 16 x 10 24 F12 F16 17.2
RG-320 68 3198 24.3 131 17.0 72 95 22 x 14 24 F14 F20 27.9
RG-380 62 3800 22.0 173 15.5 72 95 22 x 14 24 F14 F20 28.7
RG-400 68 4038 24.5 165 17.0 72 95 22 x 14 24 F14 F20 34.1
RG-450 53 4530 19 239 13.3 75 110 22 x 14 24 F16 F20 35
