RG-S Series Manual Gear

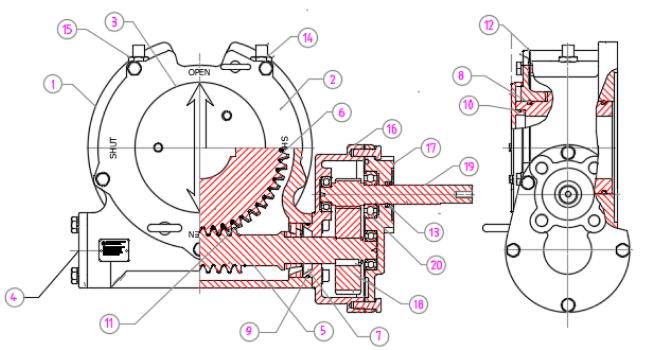

Parts Materials List

Item Description Qty Material Specs. / Standard
1

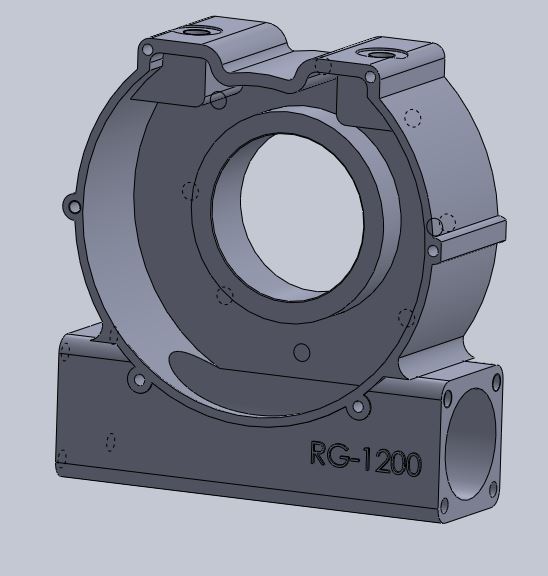

Housing
1 SGI 400/15 IS 1865
2

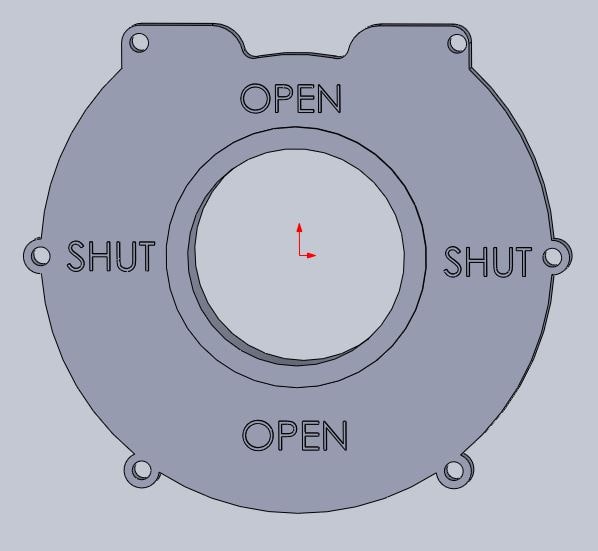

Top Cover
1 SGI 400/15 IS 1865
3
Indicator
1 SGI 400/15 IS 1865
4
End Cover
1 SGI 400/15 IS 1865
5

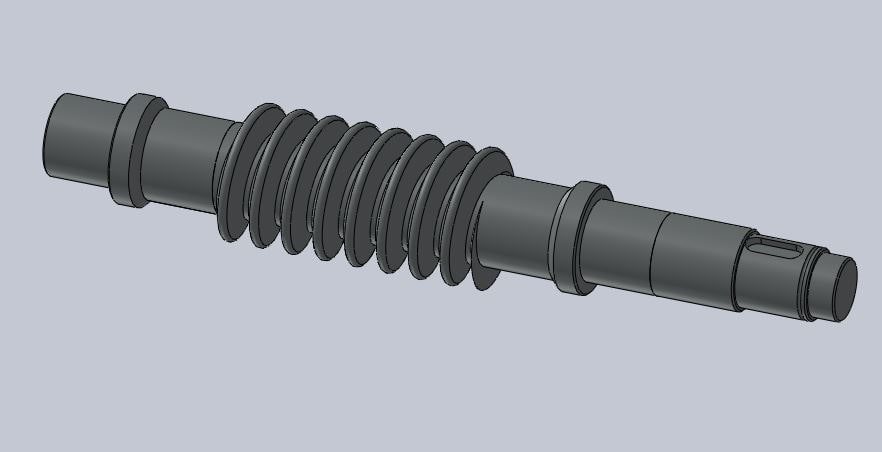

Worm Shaft
1 1%CrMo Steel EN 19/ BS 970 (Cond R)
6

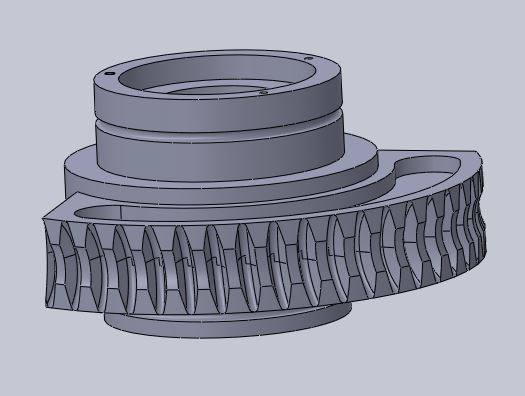

Quadrant
1 SGI 500/7 IS 1865
7

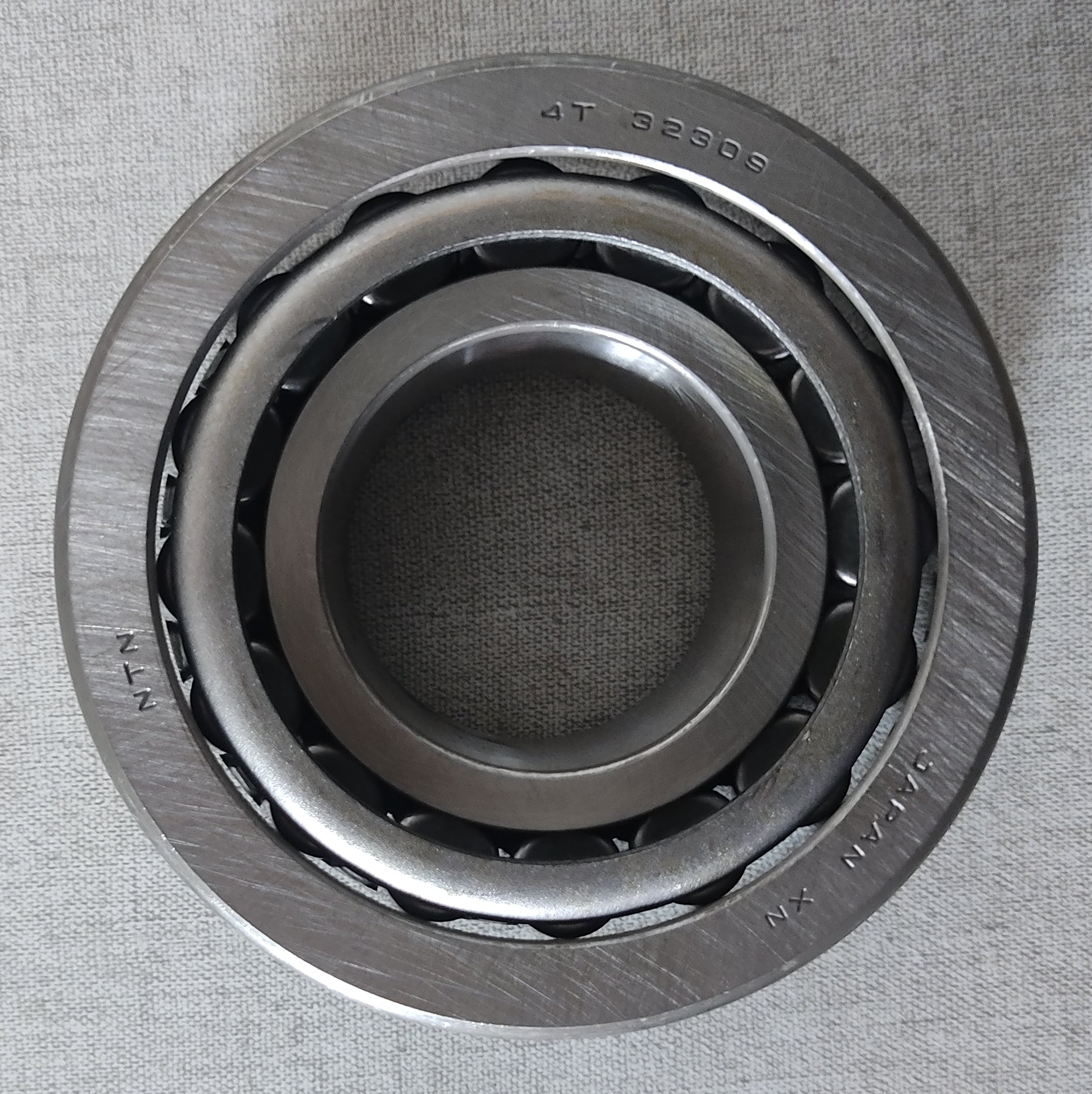

Taper Roller Bearing
2 BS SAE52100
8

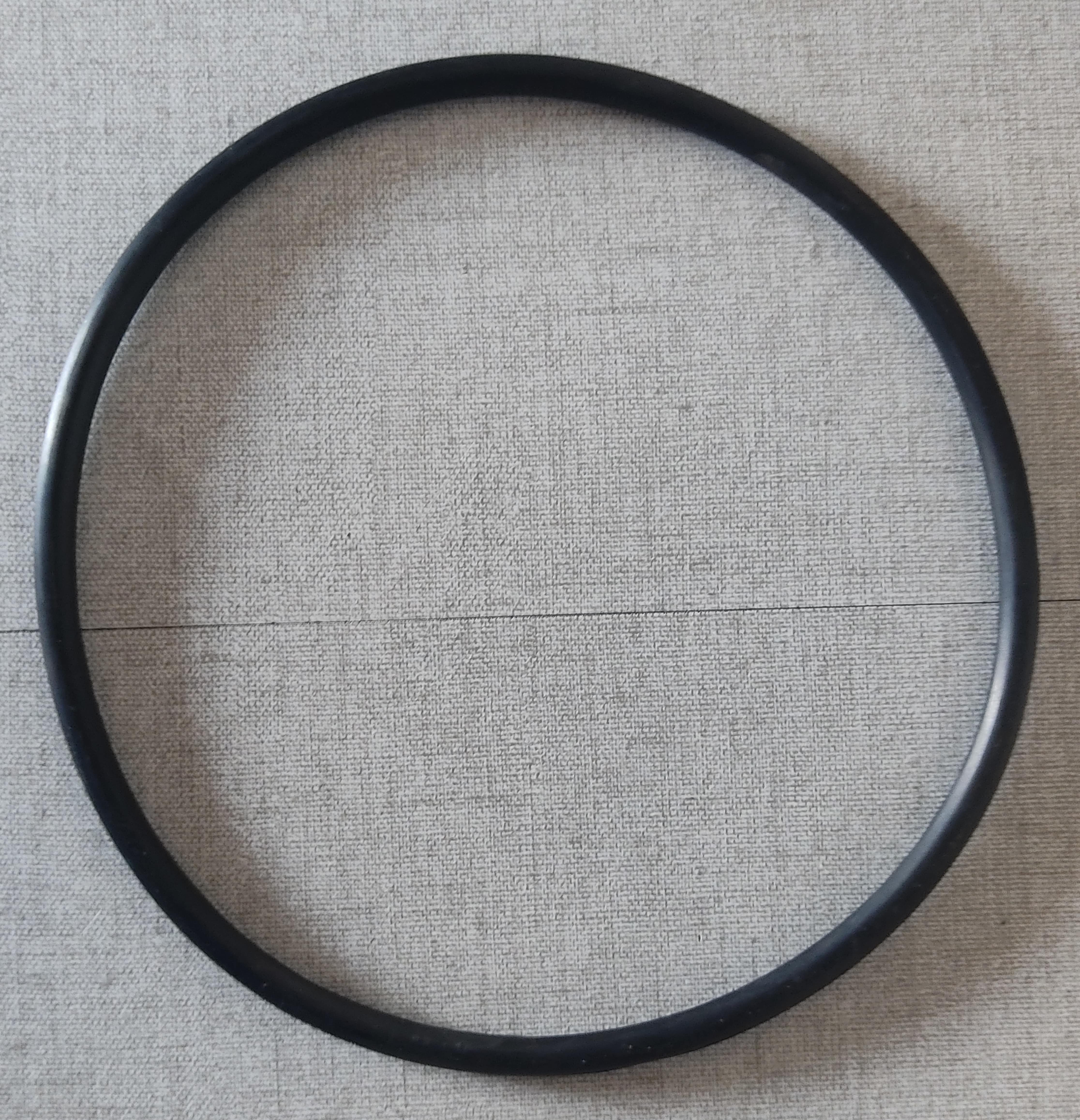

Quadrant O'Ring
2 Nitrile IS 3400
9

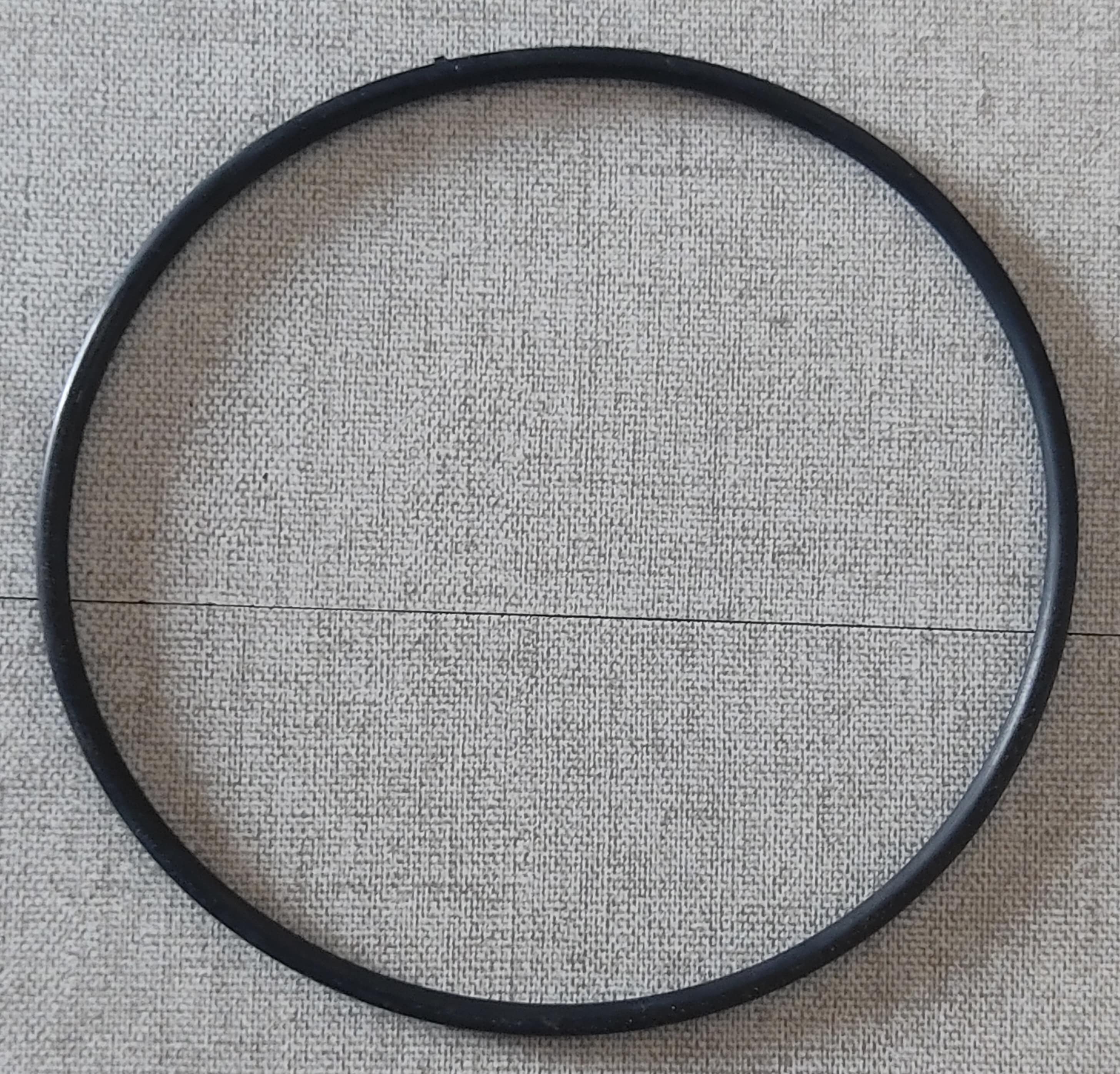

End Cover O'Ring
2 Nitrile IS 3400
10

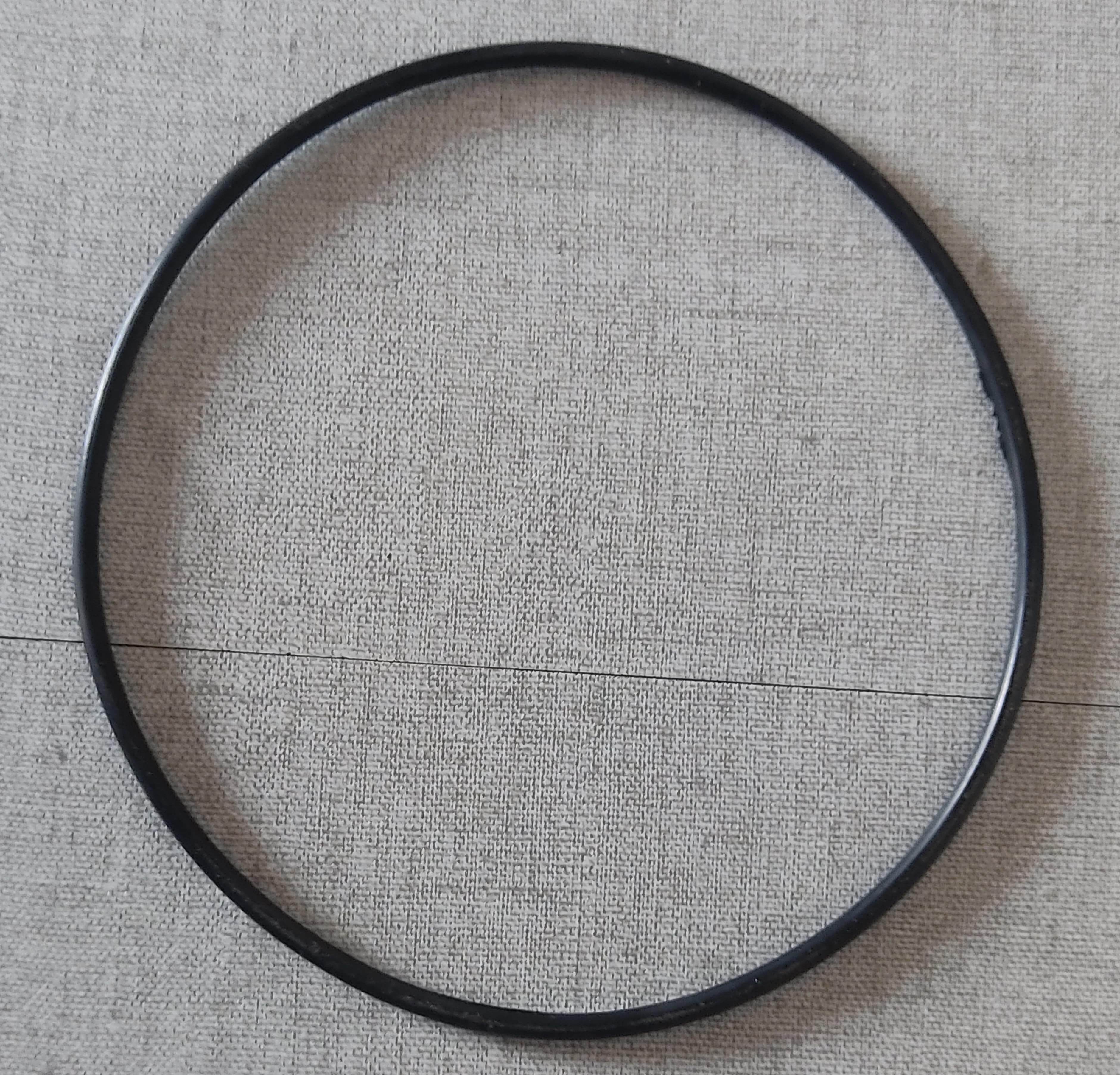

Indicator O'Ring
1 Nitrile IS 3400
11
Grease
1 EP2 IS 7623
12

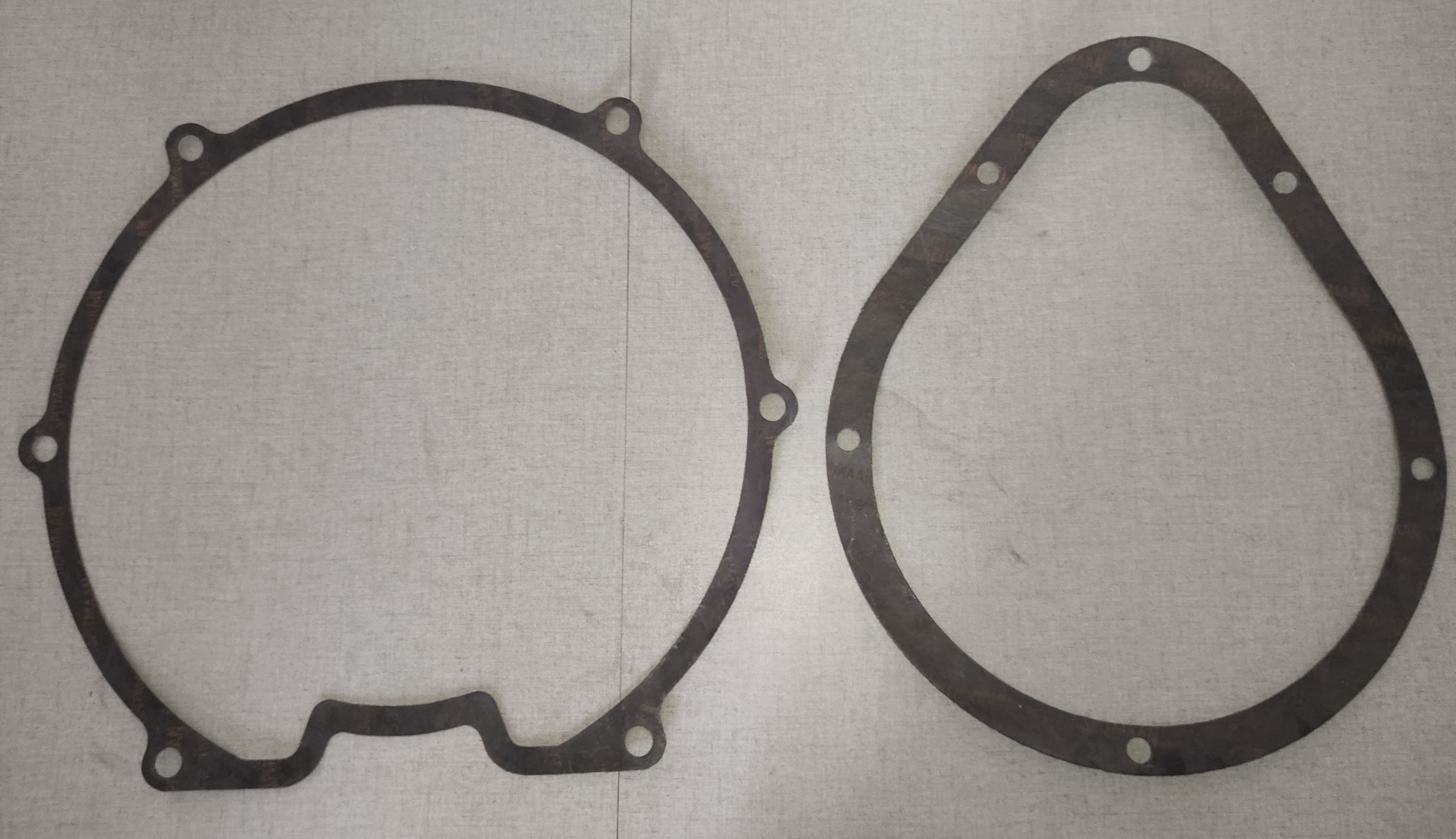

Gasket
2 Non Asbestos IS 2712
13

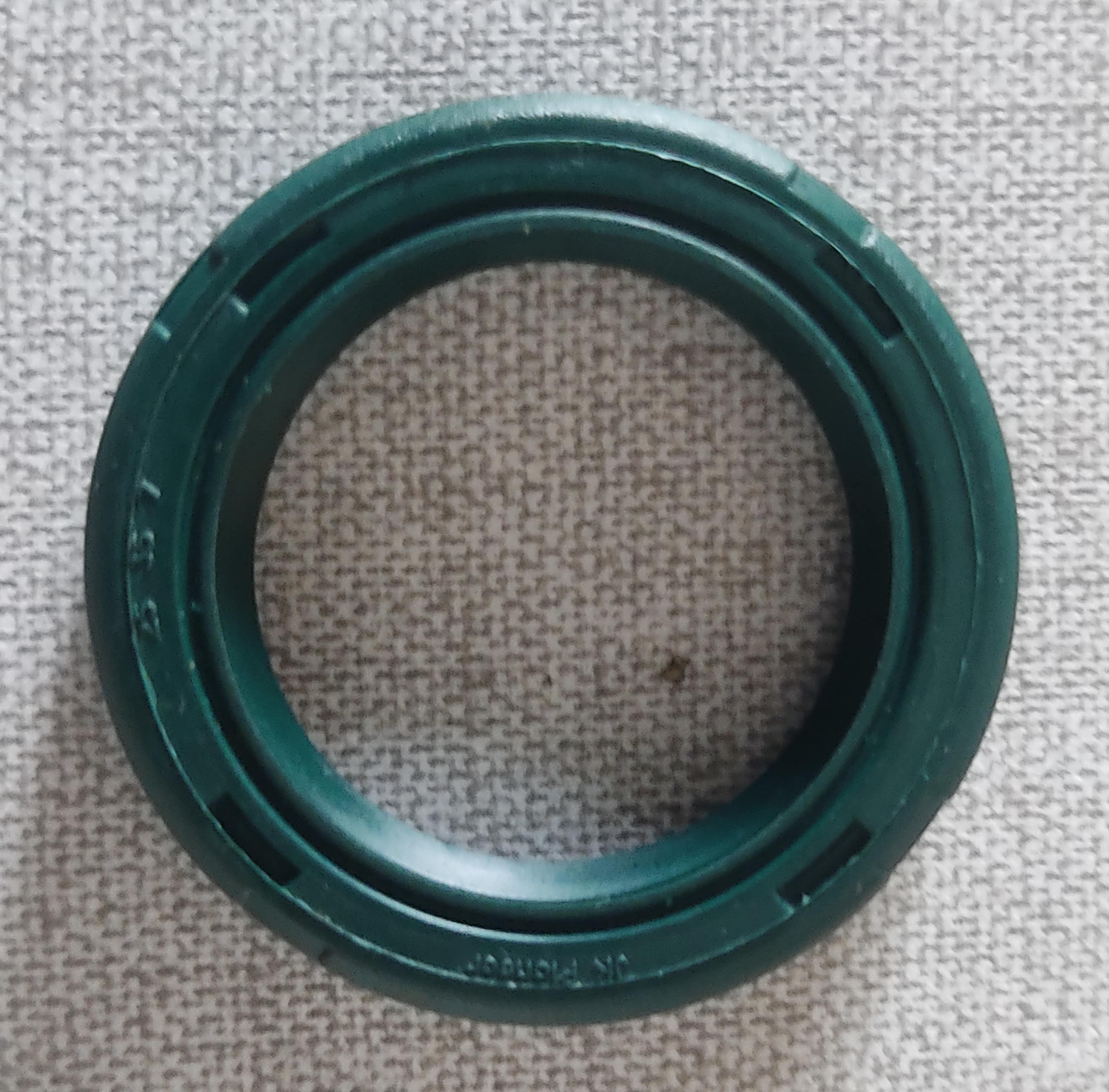

Shaft Seal
1 Nitrile IS 3400
14

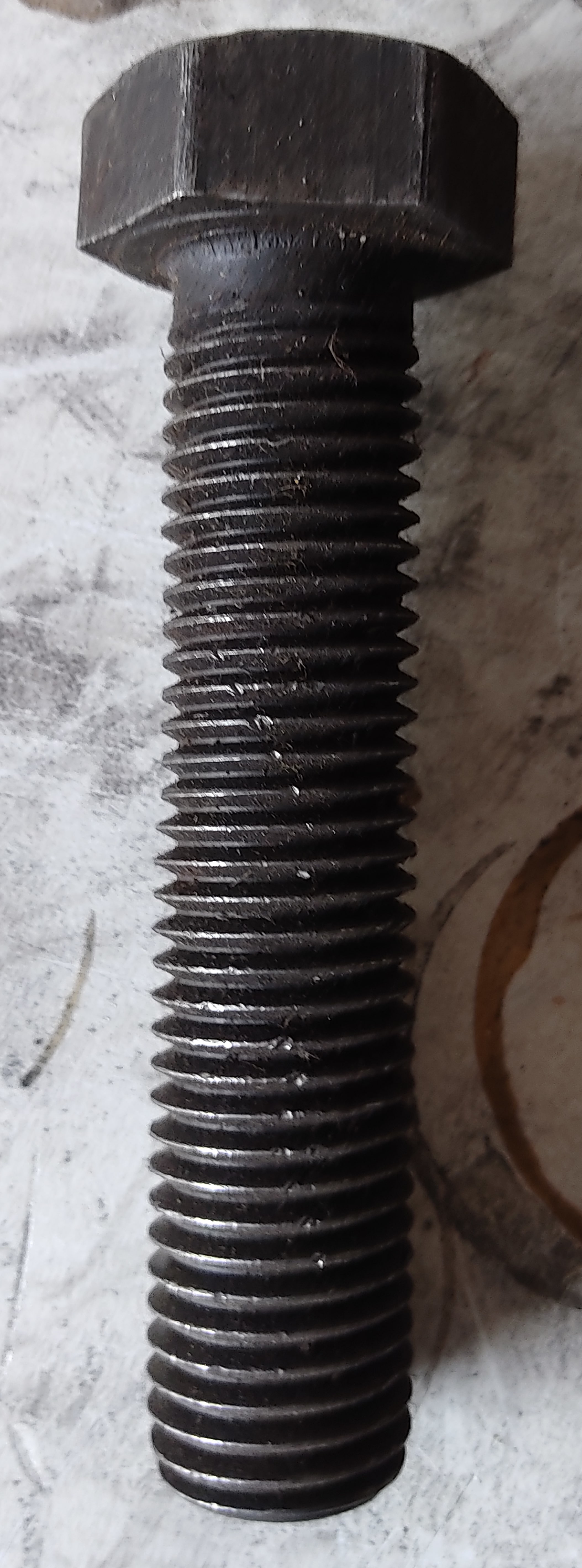

Travel Stops
2 Carbon Steel Gr. 10.9 / BS 3692
15

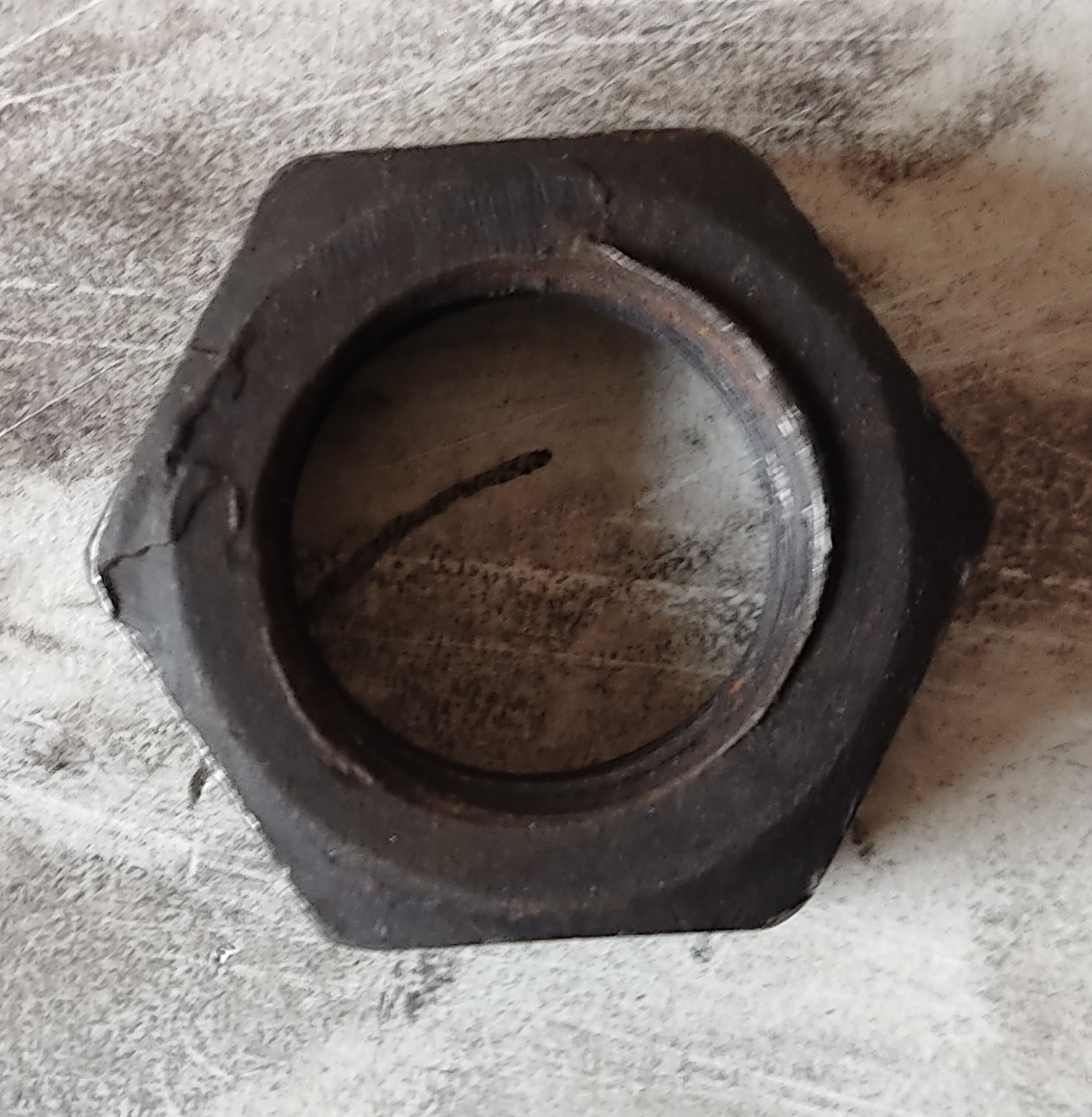

Lock Nut
2 Carbon Steel Gr. 10.9 / BS 3692
16

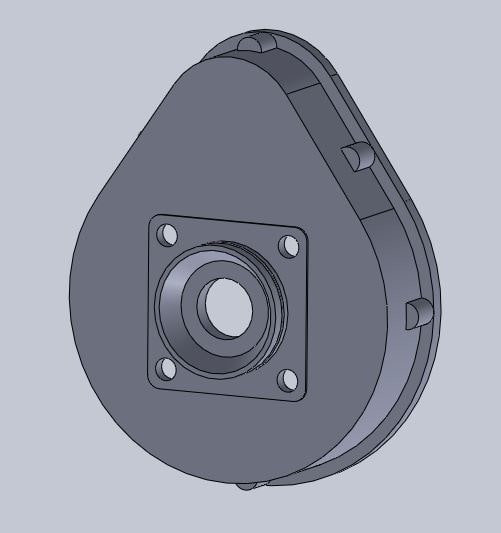

Gear Case
1 SGI 400/15 IS 1865
17

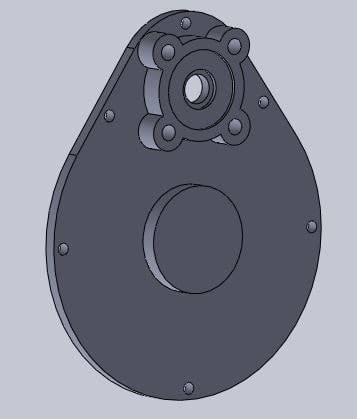

Gear Case Cover
1 SGI 400/15 IS 1865
18

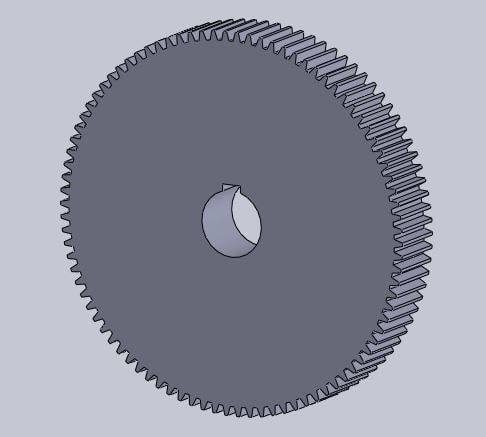

Spur Gear
1 40% Corbon Steel EN 8 / BS 970 (Cond Q)
19

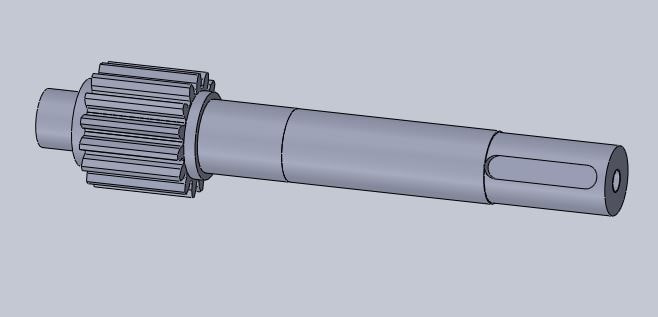

Pinion Shaft
1 40% Corbon Steel EN 8 / BS 970 (Cond Q)
20

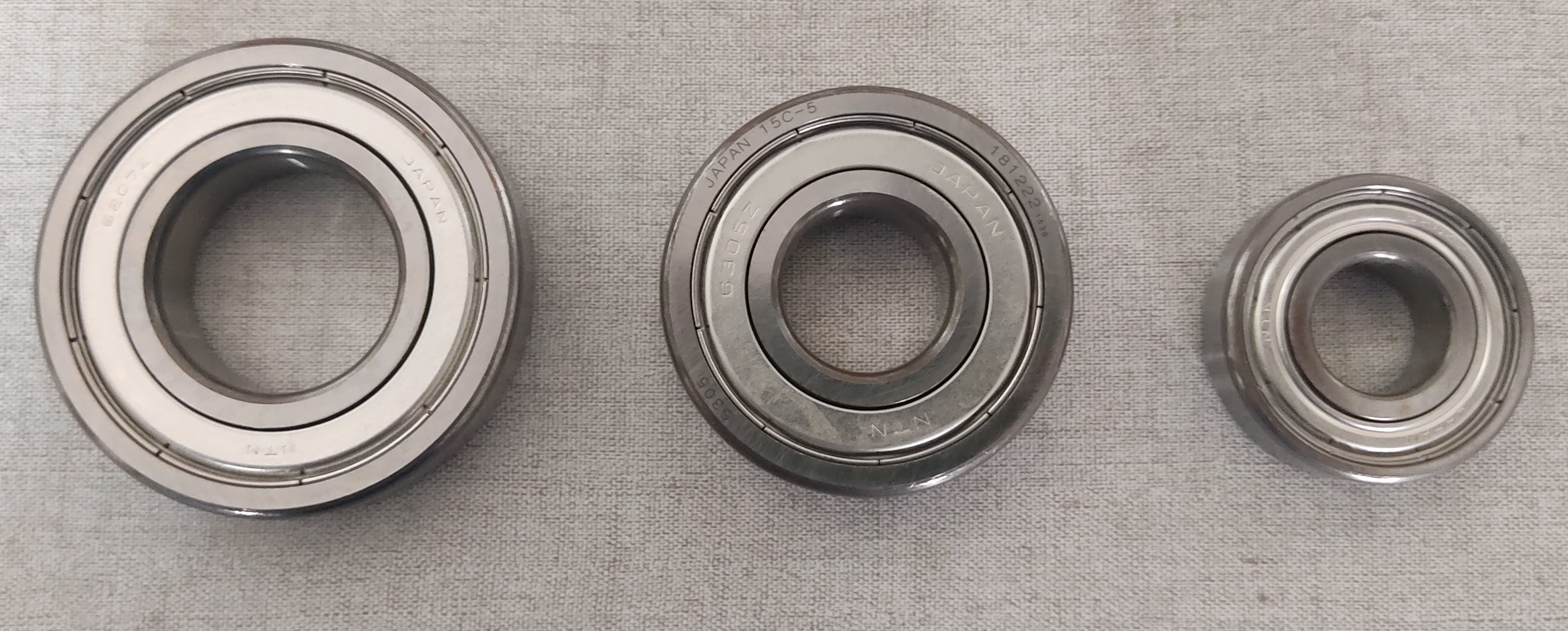

Radial Ball Bearings
3 BS SAE52100

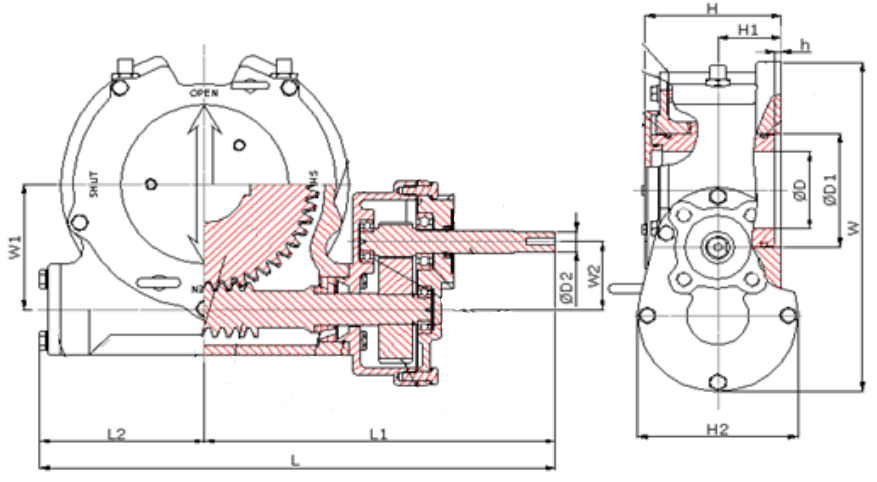

Dimensions

Model L L1 L2 W W1 W2 h H H1 H2 D [Max] D1 D2 O/P key
Units mm mm mm mm mm mm mm mm mm mm mm mm mm mm
RG-450-S2.5 455 294 152 330 128 51 8 131 64 154 75 120 Ø19 6 x 6
RG-450-S3 499 347 152 337 128 75 8 131 64 167 75 120 Ø24 8 x 7
RG-610-S2.5 495 323 172 356 138 52.5 8 142 66 154 85 125 Ø24 8 x 7
RG-610-S3 538 365 172 363 138 75 8 142 66 167 85 125 Ø24 8 x 7
RG-610-S5 538 365 172 403 138 112.5 8 142 66 246 85 125 Ø24 8 x 7
RG-790-S5 569 380 189 403 138 112.5 8 164 74 246 85 125 Ø24 8 x 7
RG-790-S6 569 380 189 421 138 131.3 8 164 74 282 85 125 Ø24 8 x 7
RG-1200-S6 621 404 217 498 182 131.3 8 159 69 282 100 150 Ø24 8 x 7

Technical Data Sheet

Richtech’s technical data shows various combination of products which is more flexible for the customers to choose their desired product by considering Mechanical advantage, Gear ratio, Actuator sizing etc.

Model Gear Ratio Output Tarque [Max] Mechanical Advantage [MA] Input Tarque Turns to Close Bore Dia. [Max] Stem Height [Max] Key at Bore [Max] Input Shaft Dia. [Max] Flange Type [ISO-5211] Unit Weight [Exd. Hand Wheel]
Units N-M +10% N-M +/-5 deg mm mm mm mm Min Max Kg. [Approx.]
RG-450-S2.5 133 4530 40.3 112 33.1 75 110 22 x 14 19 F16 F20 40.1
RG-450-S3 159 4530 48.3 94 39.8 75 110 22 x 14 24 F16 F20 45.6
RG-610-S2.5 125 6082 37.3 163 31.3 85 122 25 x 14 19 F16 F25 51.0
RG-610-S3 150 6082 45 135 37.5 85 122 25 x 14 24 F16 F25 55.8
RG-610-S5 250 6082 74.6 82 62.5 85 122 25 x 14 24 F16 F25 66.6
RG-790-S5 190 7900 55.0 144 47.5 85 142 25 X 14 24 F16 F25 79.9
RG-790-S6 228 7900 65.6 120 57 85 142 25 X 14 24 F16 F25 85.1
RG-1200-S6 312 12000 92.0 130 78 100 138 28 X 16 24 F20 F30 113.4
